Analyze a Campaign in Metrics

Once the YAML file is correctly configured (Reading a Campaign into Metrics), the analysis of data can started. To analyze the campaign of experiments thanks to Metrics, you need to use the Wallet module of Metrics. Wallet stands for “Automated tooL for expLoiting Experimental resulTs” (wALLET).

To manipulate data, Wallet uses a pandas Dataframe. A dataframe is a table composed of rows corresponding to experimentations (also denoted as observations) and columns corresponding to the variables/metrics of an experimentation.

It is not necessary to have wide knowledge about this library to manipulate Wallet data but in order to have a better idea on how data are manipulated, an example of a classical analysis dataframe is given:

	input	experiment_ware	cpu_time
0	XCSP17/AllInterval/AllInterval-m1-s1/AllInterval-035.xml	BTD 19.07.01	0.031203
1	XCSP17/AllInterval/AllInterval-m1-s1/AllInterval-035.xml	choco-solver 2019-09-16	1.51053
2	XCSP17/AllInterval/AllInterval-m1-s1/AllInterval-035.xml	choco-solver 2019-09-20	1.52427
3	XCSP17/AllInterval/AllInterval-m1-s1/AllInterval-035.xml	choco-solver 2019-06-14	1.60424
4	XCSP17/AllInterval/AllInterval-m1-s1/AllInterval-035.xml	AbsCon 2019-07-23	3.65329

For the next, the documentation focuses on the analysis of a CSP solver competition (XCSP’19).

A Preview of What is Able to Do an `Analysis`

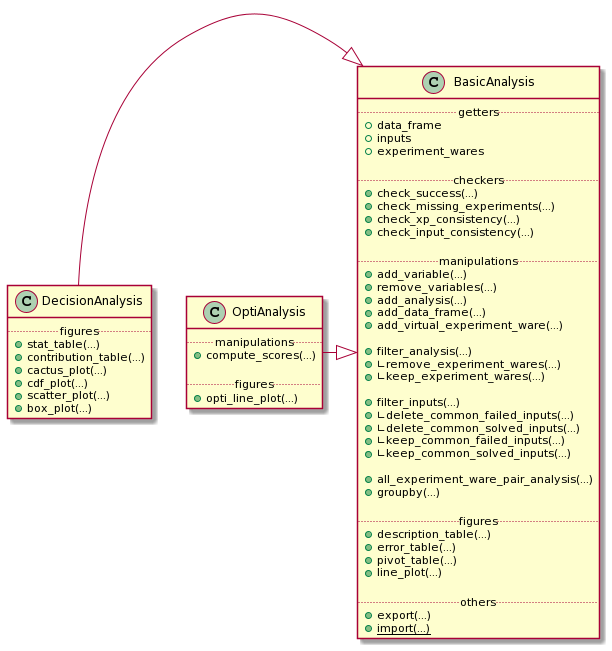

Class diagram of an *Analysis

Globally, an *Analysis object is composed of five parts:

getters to get basical objects from the analysis
checkers that permit to check many important information about the analysis
manipulations that permit to manipulate the state of the analysis
figures that permit to draw some tables and plots representing the data
others that correspond to operations like exporting.

Here, an analysis is divided in three different objects:

BasicAnalysis is an analysis with the only constraint of a complete cartesian product between inputs and experiment-wares
DecisionAnalysis is an analysis taking into account the time and the success, or not, of each experiment
OptiAnalysis is an analysis of an optimality problem taking into account the list of bound and timestamps, and the success, or not, of each experiment

A BasicAnalysis could be used openly without the constraint of success, time, or bound list information.

In this tutorial, we firstly focus on a DecisionAnalysis with the inherited methods from a BasicAnalysis.

A final part focuses on the optimality analysis of the object OptiAnalysis.

Create/Import/Export a DecisionAnalysis

The DecisionAnalysis Object

To create a new analysis, you only need to import the DecisionAnalysis class from Wallet module and instantiate a new DecisionAnalysis object with the path to the YAML configuration file:

from metrics.wallet import DecisionAnalysis

analysis = DecisionAnalysis(input_file='path/to/xcsp19/YAML/file')

In the constructor above, it is possible to specify a log_level that will be passed to Scalpel to log parsing events.

The analysis is composed of many variables describing the experiments:

necessary ones: input, experiment_ware, cpu_time, timeout
optional ones (given by the current competition file): Category, Checked answer, Objective function, Wallclock time, Memory, Solver name, Solver version.

These variables permit to check the consistency and the validity of information. Some methods, called checkers, permit to operate some basic operations:

<analysis>.check_success(<lambda>): given a lambda, this method permits to check if an experiment is a success or not (this method is automatically executed when the user has informed it in the Scalpel file);
<analysis>.check_missing_experiments(): this method is automatically called by the *Analysis constructor to replace missing experiments by unsuccessful experiments;
<analysis>.check_xp_consistency(<lambda>): given a lambda, this method permits to check the consistency for each experiment;
<analysis>.check_input_consistency(<lambda>): given a lambda, this method permits to check the consistency for each input (composed of many experiments); it asks some basic knowledge on DataFrame manipulation (an example is given by the next).

check_success and check_missing_experiments are automatically called during the *Analysis constructor call. After, the user could (re-)check these success and consistency methods as follow:

inconsistent_returns = {
    'ERR WRONGCERT', 'ERR UNSAT'
}

successful_returns = {'SAT', 'UNSAT'}

is_consistent_by_xp = (lambda x: not x['Checked answer'] in inconsistent_returns)
is_consistent_by_input = (lambda df: len(set(df['Checked answer'].unique()) & successful_returns) < 2)
is_success = (lambda x: x['Checked answer'] in successful_returns)

analysis.check_success(is_success)
analysis.check_input_consistency(is_consistent_by_input)
analysis.check_xp_consistency(is_consistent_by_xp)

The *Analysis construction warns the user when inconsistencies are found, missing data, …:

experiment is missing and has been added as unsuccessful.
experiments are inconsistent and are declared as unsuccessful.
input is inconsistent and linked experiments are now declared as unsuccessful.

The analysis creates also its own variables corresponding to the previous checkings: error, success, missing consistent_xp and consistent_input.

It exists another way to build an analysis that is presented in the Advanced Usage section.

Export and Import an Analysis

At any moment, the analysis could be exported to save its state into a file:

analysis.export('analysis.csv')

An analysis could be exported as a csv (as a DataFrame representation) if the .csv extension is used, else the analysis is exported as a binary object.

To import an analysis from a file, the function import_analysis_from_file may be used:

imported_analysis = DecisionAnalysis.import_from_file(filepath)

You can observe an example of these functions in this notebook.

Manipulate the Data from *Analysis

Before producing the first figures, Wallet proposes to manipulate the different experiments composing the dataframe. It allows to analyze more finely the campaign.

Generate a New Information/Variable for Each Experiment

Wallet can add new information to the underlying dataframe by giving a function/lambda to a mapping method of BasicAnalysis. For the next example, the input name corresponds to the path of the input (e.g., /XCSPxx/family/.../input-parameters.xcsp). It could be interesting to extract the family name to use it in the rest of the analysis. For this, the method add_variable() from BasicAnalysis:

import re
family_re = re.compile(r'^XCSP\d\d/(.*?)/')

new_analysis = analysis.add_variable(
    new_var='family',
    function=lambda x: family_re.match(x['input']).group(1)
)

add_variable() takes as first parameter the name of the future created column, and as second parameter the lambda that applies the regular expression family_re to the variable input of the row x (the regular expression returns an object corresponding to the matching strings: .group(1) permits to retrieve the family name of the input).

The result (as a sample of 5 experiments with the only 2 interesting columns shown) is:

	input	family
3641	XCSP17/Primes/Primes-m1-p25/Primes-25-80-2-7.xml	Primes
2992	XCSP17/MaxCSP/MaxCSP-maxclique-s1/MaxCSP-brock-800-2.xml	MaxCSP
2956	XCSP17/MagicSquare/MagicSquare-sum-s1/MagicSquare-13-sum.xml	MagicSquare
7106	XCSP18/GracefulGraph/GracefulGraph-K05-P02_c18.xml	GracefulGraph
4423	XCSP17/QRandom/QRandom-mdd-7-25-5/mdd-7-25-5-56-09.xml	QRandom

Thanks to this method, the user is also able to update existing columns (e.g., renaming the experiment-wares to simplify their names).

You can observe an example of this command in this notebook.

Remove Variables from the Analysis

Sometimes, some analysis information are not useful: it could be interesting to simplify and lighten the dataframe (e.g., when we need to export the analysis in a lighter format). To do this:

analysis.remove_variables(
    vars=['Category', 'Objective function']
)

where vars parameter take the list of variables to remove.

Add an Analysis or a DataFrame to the current Analysis

When many campaigns needs to be compared and two analysis a1 and a2 have been created, it is possible de merge them:

a3 = a1.add_analysis(a2)

The user has to be careful to merge consistent data: the new analysis needs to contain the Cartesian product of the available inputs in its dataframe with the experiment-wares. To ensure this and the consistency of its analysis, the user can also apply the lambda as described for the Analysis construction.

In the same way, it is possible to append the analysis with a consistent dataframe:

a3 = a1.add_data_frame(a2.data_frame)

Add a Virtual Experiment-Ware

Sometimes, it may be interesting to introduce what we call a Virtual Experiment-Ware (VEW), which generalizes the well-known Virtual Best Solver (VBS). It allows to compare our current experiment-wares to the virtual (best) one. A VBEW (Virtual Best Experiment-Ware) selects the best experiment for each input from a selection of real experiment-ware thanks to the function find_best_cpu_time_input:

from metrics.wallet import find_best_cpu_time_input

analysis_plus_vbs = analysis.add_virtual_experiment_ware(
    function=find_best_cpu_time_input,
    xp_ware_set=None, # None corresponds to the all available experiment-wares of the analysis
    name='my_best_solver'
)

Here, we create a VBEW named my_best_solver and based on the best performances of the overall set of experiment-wares. my_best_solver will receive the result of one of these experiment-wares minimizing the cpu_time column.

find_best_cpu_time_input is a function using some basic knownledge about dataframe. As an example, find_best_cpu_time_input representation is shown:

def find_best_cpu_time_input(df):
    s = df['cpu_time']
    return df[s == s.min()]

find_best_cpu_time_input receives a dataframe composed of the experiments composing a given input. It finds the minimal cpu_time value and returns the row corresponding to this best time.

You can observe an example of this method in this notebook.

Subset of `*Analysis` Rows

*Analysis is also able to make a subset of its experiments.

By Filtering Inputs

By default, it exists some useful subset methods in *Analysis object to filter inputs (and linked experiments):

keep_common_failed_inputs(): returns a new *Analysis with only the common failed experiments. It corresponds to inputs for which no experiment-ware has succeeded;
keep_common_solved_inputs(): returns a new *Analysis with only the common successful experiments. It corresponds to inputs for which no experiment-ware has failed;
delete_common_failed_inputs(): returns a new *Analysis where commonly failed inputs are removed;
delete_common_solved_inputs(): returns a new *Analysis where commonly succeeded inputs are removed.

Finally, we present a last and generic method to make a subset of inputs:

analysis.filter_inputs(
    function=<lambda>,
    how=<"all"|"any">
)

The filter_inputs method takes two parameters:

function corresponds to a True/False lambda that says if an experiment (from input experiments) is acceptable or not
how corresponds to the need to have at least one or all the experiments from input acceptables.

As examples, we show how the four default methods are set with this generic one:

Default method	Implementation
`delete_common_failed_inputs`	`analysis.filter_inputs(function=lambda x: x['success'], how='any')`
`delete_common_solved_inputs`	`analysis.filter_inputs(function=lambda x: not x['success'], how='any')`
`keep_common_failed_inputs`	`analysis.filter_inputs(function=lambda x: not x['success'], how='all')`
`keep_common_solved_inputs`	`analysis.filter_inputs(function=lambda x: x['success'], how='all')`

You can observe an example of this subset in this notebook.

By Filtering Experiments

Analysis permits also to precise what are the experiments that the user wants to filter:

analysis_no_para = analysis.filter_analysis(
    function=lambda x: 'parallel' not in x['experiment_ware']
)

The previous example permits to remove all the solvers containing the term parallel in its title.

Derived from this previous generic method, some default actions are also existing:

Default method	Implementation
`remove_experiment_wares(<set>)`	`analysis.filter_analysis(lambda x: x[EXPERIMENT_XP_WARE] not in experiment_wares)`
`keep_experiment_wares(<set>)`	`analysis.filter_analysis(lambda x: x[EXPERIMENT_XP_WARE] in experiment_wares)`

Grouping the Analysis

To group the analysis into specific analysis, two more methods are presented: the classical groupby method and another one to group experiment-wares by pairs.

`groupby` Operator

The groupby operator allows to create a list of new *Analysis instances grouped by a column value. For example, if we have the family name family of inputs in the dataframe, it could be interesting to make separated analysis of each of them:

for sub_analysis in analysis.groupby('family'):
	print(sub_analysis.description_table())

These previous lines will describe the analysis of each family of my_analysis.

Pairs of Experiment-wares

To compare more precisely the overall pairs of experiment-wares, a method is implemented to return the corresponding analysis:

for sub_analysis in analysis.all_experiment_ware_pair_analysis():
	print(sub_analysis.description_table())

Draw Figures

After having built the analysis and manipulated the data we want to highlight, we can start drawing figures. Thanks to Wallet, we are able to build two kinds of plots: static and dynamic.

Wallet permits to draw static plots and computing tables showing different statistic measures. These figures can easily be exported in a format specified by the user, such as LaTeX for tables and PNG or vectorial graphics (such as SVG or EPS) for plots. Static plots are highly configurable in order to fit in their final destination (e.g., in slides or articles).

Static Tables

Each table that will be described hereafter are exportable into the LaTeX format. In addition to this transformation, it is possible to personnalize the the number pattern:

dollars_for_number puts numbers in math mode (for LaTeX outputs);
commas_for_number splits numbers with commas in math mode (for LaTeX outputs).

Each table generated are observable in this notebook.

Describe the Current Analysis

Before manipulating the analysis, it could be interesting to describe it:

analysis.description_table()

which yields the following:

	analysis
n_experiment_wares	13
n_inputs	300
n_experiments	3900
n_missing_xp	0
n_inconsistent_xp	2
n_inconsistent_xp_due_to_input	0
more_info_about_variables	.data_frame.describe(include=’all’)

This first method allows to fastly understand how is composed the campaign. Here, simple statistics are shown, as the number of experiment-wares, inputs, experiments or missing ones, but one can also show exhaustively the different variable descriptions by applying <analysis>.data_frame.describe(include='all').

Describe the Errors

If it exists missing data, the Wallet analysis can print a table showing what are these missing experiments by calling:

analysis.error_table()

which yields the following:

	input	experiment_ware	cpu_time	Checked answer	Wallclock time	Memory	Solver name	Solver version	timeout	success	user_success	missing	consistent_xp	consistent_input	error	family
3576	XCSP19/hcp/graph255.xml	cosoco 2	0.045418	ERR UNSAT	0.0451421	0	cosoco	2	2400	False	False	False	False	True	True	hcp
3596	XCSP19/hcp/graph48.xml	choco-solver 2019-09-16	2306.85	ERR WRONGCERT	583.697	1.55305e+07	choco-solver	2019-09-16	2400	False	False	False	False	True	True	hcp

The Statistic Table

The table allows to show a global overview of the results through the following statistics:

count is the number of solved inputs for a given experiment-ware;
sum is the time taken by the experiment-ware to solve (or not) inputs (including timeout inputs);
PARx is equivalent to sum but adds a penalty of x times the timeout to failed experiments (PAR stands for Penalised Average Runtime);
common count is the number of inputs commonly solved by all the experiment-wares;
common sum is the time taken to solve the commonly solved inputs;
uncommon count corresponds to the number of inputs solved by an experiment-ware less the common ones (the common ones could be considered as easy inputs);
total the total number of experiments for a given experiment-ware.

analysis.stat_table(
    output='output/stat_table.tex',
    commas_for_number=True,
    dollars_for_number=True,
)

This table is given by calling the previous method with different parameters:

par corresponds to the different values we want to give to the PARx column(s);
output is the path to the output we want to produce (e.g., a LaTeX table).

experiment_ware	count	sum	PAR1	PAR2	PAR10	common count	common sum	uncommon count	total
VBS	270	90388	90388	162388	738388	65	405	205	300
PicatSAT 2019-09-12	246	192377	192377	321977	1.35878e+06	65	11093	181	300
Fun-sCOP hybrid+CryptoMiniSat (2019-06-15)	209	274323	274323	492723	2.23992e+06	65	16472	144	300
Fun-sCOP order+GlueMiniSat (2019-06-15)	190	320070	320070	584070	2.69607e+06	65	14632	125	300
AbsCon 2019-07-23	168	341387	341387	658187	3.19259e+06	65	2805	103	300
choco-solver 2019-06-14	168	369846	369846	686646	3.22105e+06	65	7875	103	300
Concrete 3.10	165	369615	369615	693615	3.28562e+06	65	5182	100	300
choco-solver 2019-09-16	165	372266	372266	696266	3.28827e+06	65	7790	100	300
choco-solver 2019-09-20	165	372316	372316	696316	3.28832e+06	65	7754	100	300
Concrete 3.12.3	156	386276	386276	731876	3.49668e+06	65	7198	91	300
choco-solver 2019-09-24	149	390634	390634	753034	3.65223e+06	65	2570	84	300
BTD 19.07.01	135	421087	421087	817087	3.98509e+06	65	6718	70	300
cosoco 2	127	448425	448425	863625	4.18522e+06	65	6810	62	300

The Pivot Table

The pivot table allows to show exhaustively a precise variable between the set of experiment-wares (rows) and inputs (cols).

analysis.pivot_table(
    index='input',
    columns='experiment_ware',
    values='cpu_time',
    output='output/pivot_table.tex',
    commas_for_number=True,
    dollars_for_number=True,
)#.head()

index permits to precise what we want in the rows;
columns permits to precise what we want in the cols;
values permits to precise what we want to show in the cells as information crossing index and columns.

input	AbsCon 2019-07-23	BTD 19.07.01	Concrete 3.10	Concrete 3.12.3	Fun-sCOP hybrid+CryptoMiniSat (2019-06-15)	Fun-sCOP order+GlueMiniSat (2019-06-15)	PicatSAT 2019-09-12	VBS	choco-solver 2019-06-14	choco-solver 2019-09-16	choco-solver 2019-09-20	choco-solver 2019-09-24	cosoco 2
XCSP17/AllInterval/AllInterval-m1-s1/AllInterval-035.xml	3.65329	0.031203	81.2146	9.80993	11.6944	14.1492	228.644	0.031203	1.60424	1.51053	1.52427	69.1219	14.919
XCSP17/AllInterval/AllInterval-m1-s1/AllInterval-040.xml	3.77132	0.045375	127.241	189.841	14.8833	14.6022	290.328	0.045375	1.68856	1.75339	1.57938	46.7505	0.347661
XCSP17/Bibd/Bibd-sc-open/Bibd-sc-85-085-36-36-15.xml	2520.04	2519.91	2520.16	2520.2	2520.44	2520.28	2520.07	140.442	2520.42	2520.66	2520.74	2520.05	140.442
XCSP17/Bibd/Bibd-sc-stab1/Bibd-sc-25-05-01.xml	2520.1	2519.89	2520.11	2520.12	45.027	43.2998	21.1751	21.1751	2520.63	1666.8	1680.89	379.265	2519.75
XCSP17/Bibd/Bibd-sc-stab1/Bibd-sc-25-09-03.xml	2520.11	2519.77	2520.1	2520.07	1689.17	2520.14	515.664	137.506	137.506	260.369	211.421	2520.11	2520.02

The output is truncated.

The Contribution Table

This last table proposed by Wallet allowing to show the contribution of each experiment-ware:

vbew simple corresponds to the number of times an experiment-ware has been selected in the VBEW;
vbew d corresponds to the number of times an experiment-ware solves an instance d second(s) faster than all other solvers;
contribution corresponds to the case that an experiment-ware is the only one that has been able to solve an input (a.k.a. state-of-the-art contribution).

As for the previous table, one just needs to call the following method:

analysis.remove_experiment_wares(['VBS']).contribution_table(
    output='output/contribution_table.tex',
    commas_for_number=True,
    dollars_for_number=True,
)

NB: the previously created virtual experiment-ware VBS is removed to avoid errors in the computations.

deltas correspond to the list of vbew d we want to show in the table.

experiment_ware	vbew simple	vbew 1s	vbew 10s	vbew 100s	contribution
BTD 19.07.01	76	28	11	1	0
cosoco 2	59	35	17	9	5
PicatSAT 2019-09-12	40	35	30	9	0
Fun-sCOP hybrid+CryptoMiniSat (2019-06-15)	38	38	35	18	0
AbsCon 2019-07-23	19	19	15	1	0
Fun-sCOP order+GlueMiniSat (2019-06-15)	16	16	11	5	3
choco-solver 2019-09-24	14	14	6	1	0
choco-solver 2019-06-14	7	6	5	3	0
Concrete 3.10	6	6	5	1	0
Concrete 3.12.3	4	4	4	0	0
choco-solver 2019-09-16	3	3	2	1	0
choco-solver 2019-09-20	1	1	1	0	0

Static Plots

Wallet proposed many plots to show data. Static plots have some common parameters:

figure_size: size of the figure to output (inches);
title: the figure title;
x_axis_name: the x-label title;
y_axis_name: the y-label title;
output: output path to save the figure or None;
color_map: a map to force the color of each experiment-ware line;
style_map: a map to force the line style of each experiment-ware line;
title_font_*: the title font properties;
label_font_*: the label font properties;
latex_writing: if True, allows to write in LaTeX mode;
logx: log scale for the x-axis;
logy: log scale for the y-axis;
[x|y]_[min|max]: set the limit of an axis, or -1 to take the default value of matplotlib;
legend_location: the four legend positions (Position.RIGHT, Position.LEFT, Position.TOP, Position.BOTTOM);
legend_offset: a couple x and y as offsets for the current legend location;
ncol_legend: number of columns for the legend (default: 1).

A full example of a static plots is given in this notebook.

Static Cactus-Plot

A first kind of plots that allows to consider an overview of all the experiment-wares is the cactus plot. A cactus plot considers all solved inputs of each experiment-ware. Each line in the plot represents an experiment-ware. Inputs are ordered by solving time for each experiment-ware to build this figure: the x-axis corresponds to the rank of the solved input and the y-axis to the time taken to solve the input, so that the righter the line, the better the solver. Note that we can also cumulate the runtime of each solved inputs to get a smoother plot.

analysis.cactus_plot(
    # Cactus plot specificities
    cumulated=False,
    cactus_col='cpu_time',
    show_marker=False,

    # Figure size
    figure_size=(7, 3.5),

    # Titles
    title='Cactus-plot',
    x_axis_name='Number of solved inputs',
    y_axis_name='Time',

    # Axis limits
    x_min=50,
    x_max=None,
    y_min=None,
    y_max=None,

    # Axis scaling
    logx=False,
    logy=False,

    # Legend parameters
    legend_location=Position.RIGHT,
    legend_offset=(0, 0),
    ncol_legend=1,

    # Style mapping
    color_map={
        'VBS': '#000000'
    },
    style_map={
        'VBS': LineType.DASH_DOT,
    },

    # Title font styles
    title_font_name='Helvetica',
    title_font_color='#000000',
    title_font_size=11,
    title_font_weight=FontWeight.BOLD,

    # Label font styles
    label_font_name='Helvetica',
    label_font_color='#000000',
    label_font_size=11,
    label_font_weight=FontWeight.BOLD,

    # Others
    latex_writing=True,
    output="output/cactus.svg",
    dynamic=False
)

By default, the cactus plot draws its graphic by using the cpu_time of the results: you are free to change this behaviour by replacing the cactus_col parameter. You can ask this plot to cumulate the runtime by giving cumulated=True. We can show and hide markers thanks to show_marker parameter. The legend ordering corresponds to the decreasing order of the number of solved inputs for each experiment-ware.

Static CDF-Plot

Equivalently to cactus plot, one may instead use the so-called Cumulative Distribution Function (CDF), which is well-known when considering statistics. In this plot x-axis corresponds to the y-axis of the cactus-plot (time), and the y-axis corresponds to the normalized number of solved inputs. A point on the line of the CDF may be interpreted as the probability to solve an input given a time limit.

analysis.cdf_plot(
    # Cactus plot specificities
    cumulated=False,
    cdf_col='cpu_time',
    show_marker=False,

    # Figure size
    figure_size=(7, 3.5),

    # Titles
    title='CDF-plot',
    x_axis_name='Time',
    y_axis_name='Number of solved inputs',

    # Axis limits
    x_min=None,
    x_max=None,
    y_min=None,
    y_max=None,

    # Axis scaling
    logx=False,
    logy=False,

    # Legend parameters
    legend_location=Position.RIGHT,
    legend_offset=(0, 0),
    ncol_legend=1,

    # Style mapping
    color_map={
        'VBS': '#000000'
    },
    style_map={
        'VBS': LineType.DASH_DOT,
    },

    # Title font styles
    title_font_name='Helvetica',
    title_font_color='#000000',
    title_font_size=11,
    title_font_weight=FontWeight.BOLD,

    # Label font styles
    label_font_name='Helvetica',
    label_font_color='#000000',
    label_font_size=11,
    label_font_weight=FontWeight.BOLD,

    # Others
    latex_writing=True,
    output="output/cdf.svg",
    dynamic=False
)

By default, the CDF plot draws its graphic by using the cpu_time of results: you are free to change this behaviour by replacing the cdf_col parameter.

Static Box-Plot

In addition to cactus and CDF plots, one may consider box plots to get more detailed results about the runtime of each solver. A box in such a plot represents the distribution of each experiment time of a given experiment-ware. In particular, such plots allow to easily locate medians, quartiles and means for all experiment-wares in a single figure. We can find a practical application of this plot in the case of randomized algorithms: it permits to visualize the variance and to simply compare the effect of changing the random function seed for a given fixed solver configuration using it.

analysis.box_plot(
    # Box plot specificities
    box_by='experiment_ware',
    box_col='cpu_time',

    # Figure size
    figure_size=(7, 7),

    # Titles
    title='Box-plots',
    x_axis_name=None,
    y_axis_name=None,

    # Axis limits
    x_min=None,
    x_max=None,

    # Axis scaling
    logx=True,

    # Title font styles
    title_font_name='Helvetica',
    title_font_color='#000000',
    title_font_size=11,
    title_font_weight=FontWeight.BOLD,

    # Label font styles
    label_font_name='Helvetica',
    label_font_color='#000000',
    label_font_size=11,
    label_font_weight=FontWeight.BOLD,

    # Others
    latex_writing=True,
    output="output/box.svg",
    dynamic=False
)

By default, the box plot draw its graphic by using the cpu_time of results: the user is free to change this behaviour by replacing the box_col parameter. Also, by default, the box_by parameter is set to experiment_ware meaning that each box represents an experiment_ware. The user may like to replace this by another column, for example the family col, and explore family data distributions.

Static Scatter-Plot

Finally, to get a more detailed comparison of two experiment-wares, one can use scatter plots. Each axis in this plot corresponds to an experiment-ware and displays its runtime (between $0$ and the timeout). We can place each input in the plot as a point corresponding to the time taken by both experiment-wares to solve this input. We can quickly observe if there exists a trend for one experiment-ware or the other in terms of efficiency.

rename = {
    "PicatSAT 2019-09-12": '$PicatSAT^{2019-09-12}$',
    "Fun-sCOP+CryptoMiniSat": '$^{Fun-sCOP}/_{CryptoMiniSat}$'
}

a2 = analysis.add_variable(
    'experiment_ware',
    lambda x: x['experiment_ware'] if x['experiment_ware'] not in rename else rename[x['experiment_ware']]
)

a2.scatter_plot(
            "$PicatSAT^{2019-09-12}$",
            "$^{Fun-sCOP}/_{CryptoMiniSat}$",
            scatter_col="cpu_time",
            title=None,

            color_col="Checked answer",
            x_min=1,
            x_max=None,
            y_min=1,
            y_max=None,
            logx=True,
            logy=True,

            figure_size=(7, 3.5),

            legend_location=Position.TOP,
            legend_offset=(0, -.1),
            ncol_legend=2,

            title_font_name='Helvetica',
            title_font_color='#000000',
            latex_writing=True,
            output="output/scatter.svg",
            dynamic=False
    )

To draw a scatter-plot, we need to specify the experiment-wares on the x-axis and tge y-axis: xp_ware_x and xp_ware_y. By default, the scatter plot draw its graphic by using the cpu_time of results: you are free to change this behaviour by replacing the scatter_col parameter.

Dynamic Plots

Dynamic plots can be called by simply setting the dynamic parameter to True.

For example:

my_analysis.get_scatter_plot(dynamic=True)

Advanced Usage

For a more advanced usage, it is possible to get the original pandas Dataframe and to manipulate it thanks to this instruction:

df = analysis.data_frame

Then simply follow pandas documentation or more concisely this pandas cheat sheet.

If the user keeps the minimal necessary information in the modified dataframe, a new Analysis could be instanciated (with the optional success and consistency lambda checkers):

analysis = Analysis(data_frame=modified_df)

Every previous static tables correspond to pandas DataFrame and are thus manipulable.

Make an Optimality Analysis with `OptiAnalysis`

To make an optimality analysis, the user needs to parse and get back some needed information:

the usual input, experiment_ware, cpu_time, timeout columns
the additional columns:
- bound_list is the list of all found bounds during an experiment
- timestamp_list is the corresponding timestamp of each bound of bound_list
- objective is equal to min for minimization problem else max
- status informs the final status of the experiment (COMPLETE or INCOMPLETE)
- best_bound is the final found bound before the end of the resolution

Create an `OptiAnalysis`

Once the previous needed data are well filled out in the yaml file (an example here), we can build a first optimality campaign as follows:

samp = [1,10,100,1000]
analysis = OptiAnalysis(input_file=SCALPEL_INPUT_FILE, samp=samp)

The parameter samp permits to explode the experiments in many timestamps that will permit to compute a score for each of them. In the example we focus on four timestamps (1s, 10s, 100s, and 1000s): this is an exponential way of observing results but a linear view is also interesting.

A default function default_explode is given by default to explode these data, but the advanced user could give another one to well-matching with its own extracted data.

Once constructed, the analysis object has this next data-frame in memory:

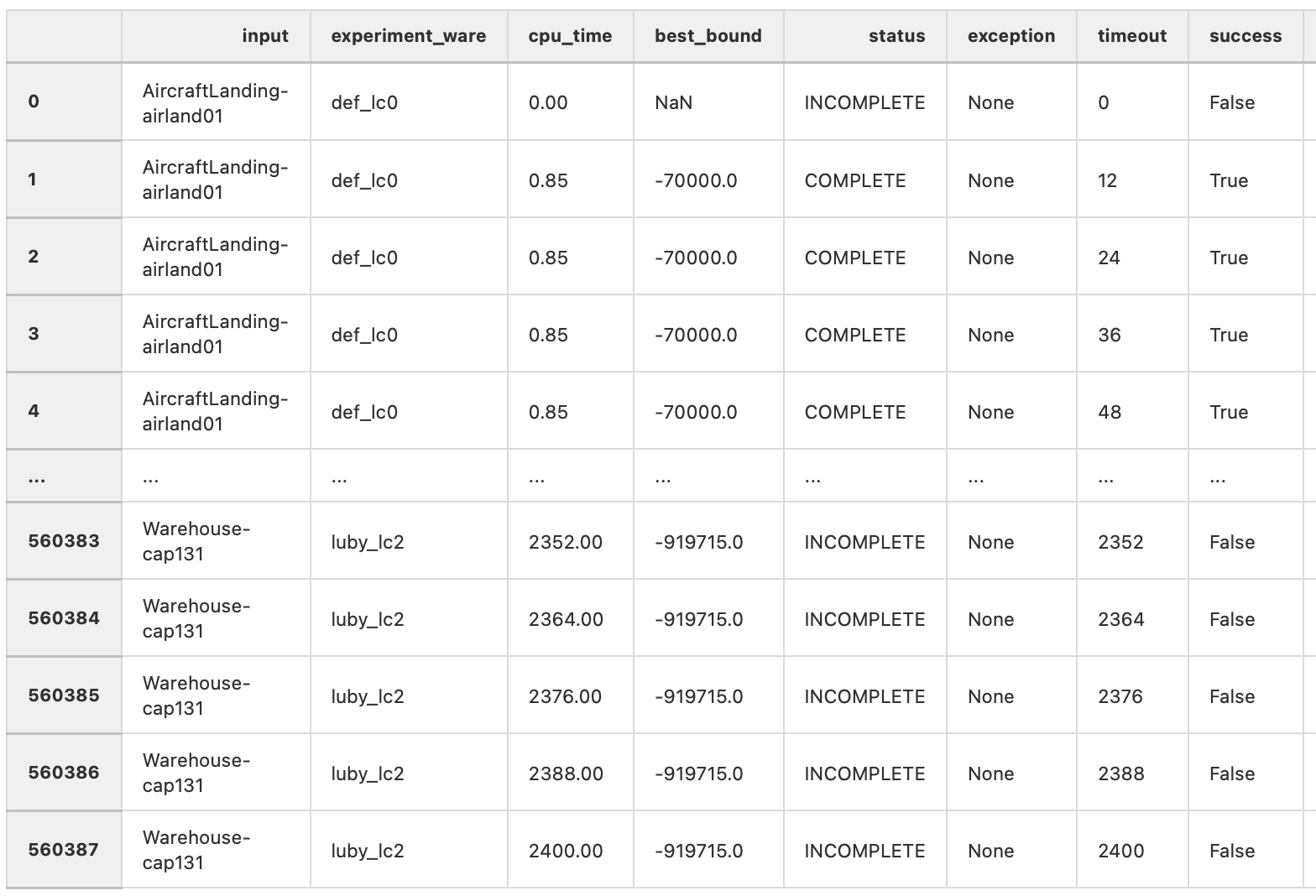

COP table

We can observe that the same couple (input, experiment-ware) appears many times – for each sampling asked by the user, visible through the timeout column. Each tuple composed of a specific (input, experiment-ware, timeout) is composed of the best_bound at this time, the current status and the success column that inform about the actual performances.

A full example here.

Compute scores

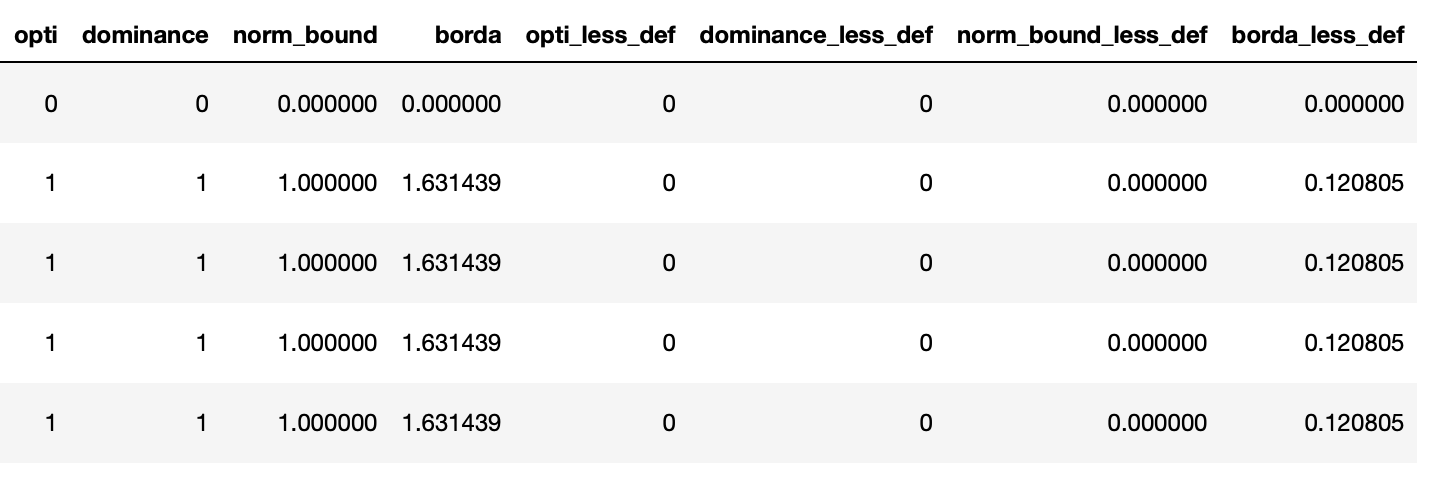

Now we have a well constructed analysis we can apply scoring methods thanks to the compute_scores method:

analysis.compute_scores(
  score_map=DEFAULT_SCORE_METHODS,
  default_solver=None
)

where:

score_map is a dictionary of scoring methods with their names and the function to apply :

DEFAULT_SCORE_METHODS = {
    'optimality': optimality_score,
    'dominance': dominance_score,
    'norm_bound': norm_bound_score,
    'borda': borda_score
}

default_solver is a default solver permitting to apply an additional operation (with additional data variables in the final data-frame) permitting to compare scores to a default solver score.

By default the different methods inside DEFAULT_SCORE_METHODS will be applied on each observation:

optimality is equal to 1 if the optimality is found/proved or 0
dominance is equal to 1 if the current bound is equal to the best one for this input
norm_bound is the normalization of the current bound, based on min and max values found for this input at the current time
borda is based on the Borda voting method by rating each solver for a given input; “Complete Scoring Procedure” in this page

The advanced user could give its function following this schema:

def dominance_score(x, min_b, max_b, df):
    return 1 if x['best_bound'] == max_b else 0
